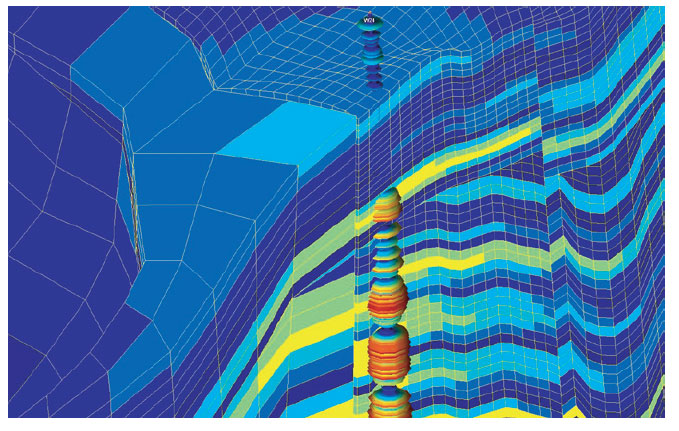

    THE STATIC MODEL

The Static Model is the result of the Integrated Analysis ( Petrophysical, Seismic, Geophysical, Geological ) Geostatistically processed reaching the most  enhanced resolution on the Geological Space.

The Static Model is a huge bata base containing all the reservoir informations which is used not only for visualization purposes but also as an  input source for further interpretations routines.

Courtesy Beicip-Franlab

  SERVICES

  Enhanced Seismic Visualisation

  Logs positioning and display

  Heterogeneity and Structural  Modeling

  Gridding

  Horizons, Layerring Determination

  Zonation

  Petrophysical Upscaling

  Property Modeling

  Facies Modeling

  Geostatistical Modeling

  Conventional Estimation

  Conditional Simulation

  Grid Based Simulation

  Object Based Simulation

_______________________________________

                  VIDEO

                    FRACA_FLOW

_______________________________________

Petrophysic-Consultants

is a  FRACA-FLOW  user.

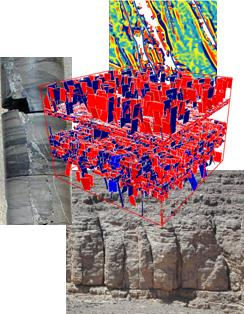

FRACTURED RESERVOIR CHARACTERIZATION and MODELING

The most powerful  Modeling Program for fractured Carbonate formations.

FRACTURE ANALYSIS

The objective is to analyze and understand the “fracture signature”
by the exhaustive review of available input data (well logs, borehole
imagery, 2D/3D seismic attributes, well tests) and interpretations.

FracaFlow provides:

• Improved geological data analysis:
fracture analysis, structural analysis and fault geometry analysis

• New dynamic data analysis:
flow meter analysis, permeability analysis, PI analysis, mud loss
analysis, production data analysis

• Density log computation and 3D density controllers:
an advanced way to compute fracture density logs and enable the building
of a 3D density driver based on multivariate non-linear statistics

• Integration of seismic, stratigraphic and production data

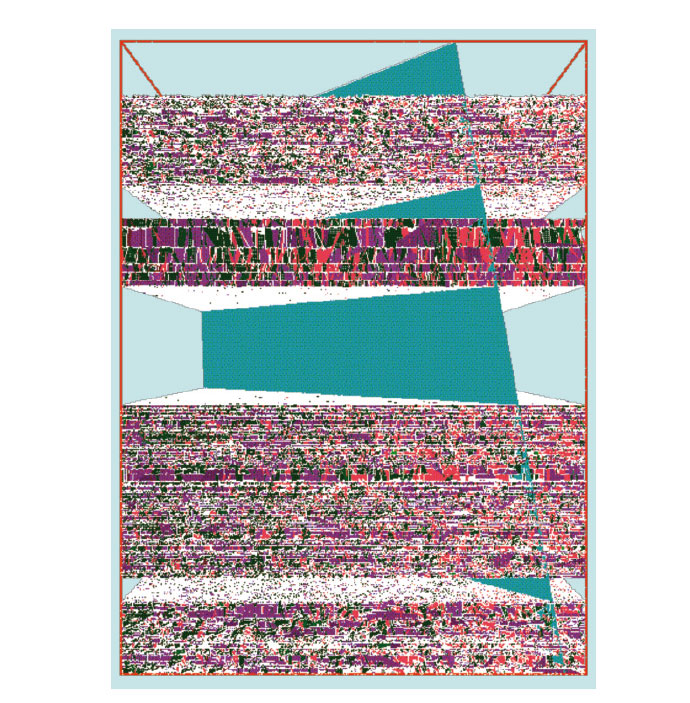

FRACTURE MODELING

The goal is to build a 3D geological model of the fracture network
consistent with the fracture data analysis.
FracaFlow provides:

• New methods of building a DFN (Discrete Fracture Network) to
model corridors and joints:
sub-seismic, stratabound and non-stratabound

• New model types: by region, fault-related, user-defined, grid-based


UPSCALING OF FRACTURE PROPERTIES

The goal is to reduce the complexity of the actual fracture system to a
few relevant equivalent parameters (at the scale of the reservoir
simulation cell scale).

FracaFlow provides:
• Computation of equivalent fracture network parameters (permeability,
block size) locally or at full field scale, using analytical and numerical
methods, required for single or dual media simulators

• Export of FracaFlow output for direct use in reservoir simulators: PumaFlow
or third-party software.


CALIBRATION OF FRACTURE PROPERTIES

The challenge is to calibrate the fracture model to dynamic data using
Kh, PLT and well test information.

FracaFlow provides:
• Automatic Kh calibration
• Dynamic tests simulation on DFN and optimization loop



FracaFlow is supported by oil companies including
ADNOC (Abu Dhabi), ENI (Italy), INA (Croatia), KOC (Kuwait),
LPI (Libya), NIOC (Iran), Petrobras (Brazil),
Petronas (Malaysia) and Statoil (Norway).
FracaFlow is a totally integrated, user-friendly fracture
modeling package enabling geologists and reservoir engineers
to understand better the impact of fractures
and their associated uncertainties.

FRACA is a Mark of BeicipFranlab
